1.Pure sine wave inverter
2.Built-in MPPT solar charge controller
3.Selectable input voltage range for home appliances and personal computers
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting

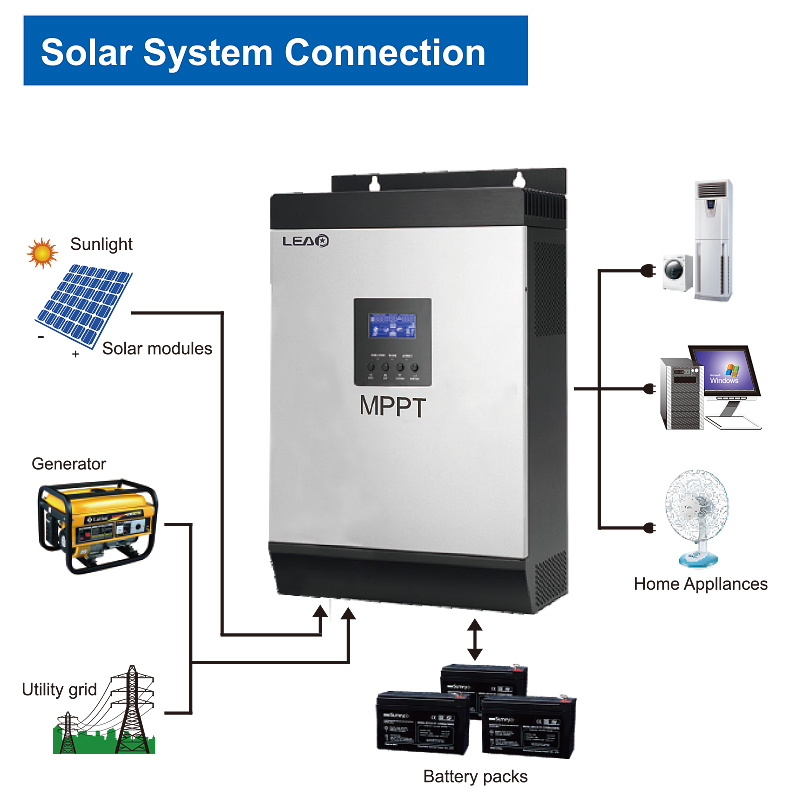

6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 9 units available for LMP 4KVA/5KVA
Call now： +86 574-63752220
| MODEL | LMP1KVA-24V | LMP 3KVA-24V | LMP 5KVA-48V | ||
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W | ||
| INPUT | |||||
| Voltage | 230VAC | ||||
| Selectable Voltage Range |
170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances) |
||||
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | ||||
| OUTPUT | |||||
|
AC Voltage Regulation (Batt. Mode) |
230VAC±5% | ||||
| Surge Power | 2000VA | 6000VA | 10000VA | ||
| Efficiency(Peak) | 90%-93% | 93% | |||
| Transfer Time |
10ms(For Personal Computers) 20 ms(For Home Appliances) |
||||
| Waveform | Pure sine wave | ||||
| BATTERY&ACCHARGER | |||||
| Battery Voltage | 24 VDC | 24 VDC | 48 VDC | ||
| Floating Charge Voltage | 27 VDC | 27 VDC | 54 VDC | ||
| Overcharge Protection | 31 VDC | 31 VDC | 60 VDC | ||
| Maximum Charge Current | 10A/20A | 20A or 30A | 10A/20A/30A/40A/50A/60A | ||
| SOLAR CHARGER | |||||
| Maximum PV Array Power | 600W | 600W | 1500W | 3000W | |
| MPPT Range @ Operating Voltage | 30VDC~66VDC | 30VDC~66VDC | 30VDC~115VDC | 60VDC~115VDC | |
|
Maximum PV Array OpenCircuit Voltage |
75 VDC | 75 VDC | 145 VDC | 145 VDC | |
| Maximum Charging Current | 25A | 25A | 60A | 60A/80A | |
| Maximum Efficiency | 98% | ||||
| Standby Power Consumption | 2W | ||||
| PHYSICAL | |||||
| Dimension, D×W×H(mm) | 128×272×355 | 140×295×540 | |||
| N.W/G.W(KGS) | 7.4/8.9 | 8/9.2 | 10/11.2 | 13.5/14.5 | 11.05/12.05 |
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||||
| Operating Temperature | 0°C to 55°C | ||||
| Storage Temperature | -15°C to 60°C | ||||
|
Product specifications are subject to change without further notice |
|||||
| MODEL | LMP1KVA-24V | LMP 3KVA-24V | LMP 5KVA-48V | ||
| Inverter Power | 800W | 2400W | 4000W | ||
|
Pmax.generated from solar charger |
25Amp 600W |
25Amp 600W |
60Amp 1500W |
60A/80Amp 3000W/4000W |
|
| Best Panel Configuration |
500Wp (250Wp×2pcs) |
500Wp (250Wp×2pcs) |
1500Wp (250Wp×6pcs) |
3000Wp (250Wp×16pcs) |
|
