1. Pure sine wave inverter
2. Built-in PWM solar charge controller
3. Selectable input voltage range and frequency according to city power in your country
4. Charging current is setable according to your battery type
5. Configurable AC/Solar input priority via LCD setting

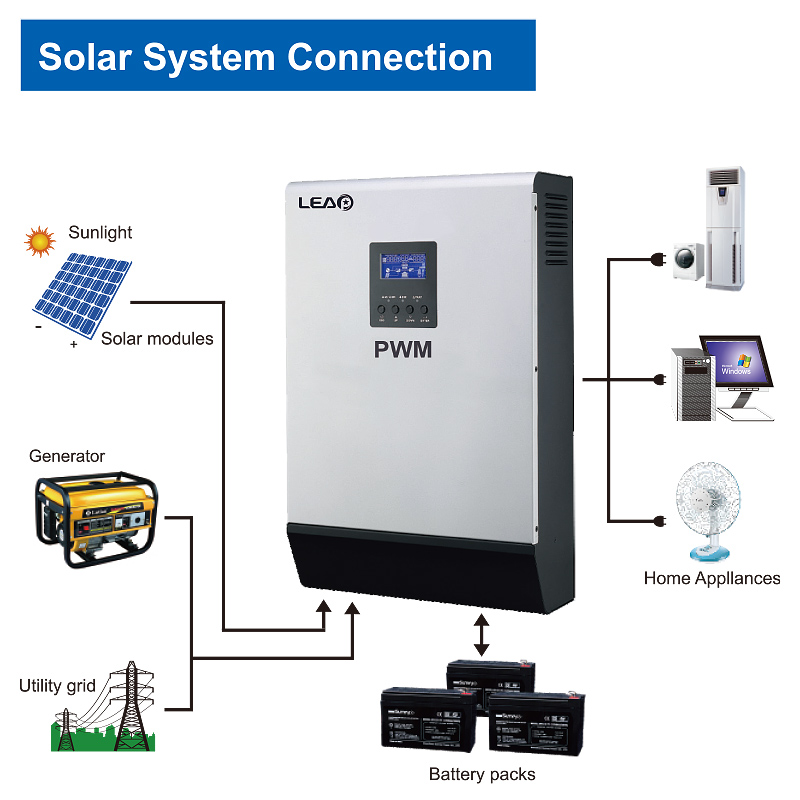

6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and short circuit protection
9. Smart charging system optimizes battery performance
10. Cold start function
Call now： +86 574-63752220
| MODEL | LP1KVA-12V | LP 3KVA-24V | LP 5KVA-48V |
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range |
170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances) |
||
| Frequency Range | 50 Hz/60 Hz(Auto sensing) | ||
| OUTPUT | |||
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5% | ||
| Surge Power | 2000VA | 6000VA | 10000VA |
| Efficiency(Peak) | 90% | 93% | |
| Transfer Time |
10 ms(For Personal Computers) 20 ms(For Home Appliances) |
||
| Waveform | Pure sine wave | ||
| BATTERY&ACCHARGER | |||
| Battery Voltage | 12VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC |
| Overcharge Protection | 15VDC | 30VDC | 60VDC |
| Maximum Charge Current | 10Aor20A | 20A or 30 A |
10A/20A/30A/ 40A/50A/60A |
| SOLAR CHARGER(OPTION) | |||
| Charging Current | 50A | ||
|
Maximum PV Array Open Circuit Voltage |
40VDC | 80VDC | 105VDC |
|
PV Range @ Operating Voltage |
15~18VDC | 30~32VDC | 60~72VDC |
| Standby Power Consumption | 1W | 2W | 2W |
| PHYSICAL | |||
| Dimension, D x W x H(mm) | 305*300*110 | 305*272*100 | 413*295*120 |
| N.W/G.W(KGS) | 4.5/6.7 | 6.9/7.8 | 9.8/10.5 |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| Operating Temperature | 0°C to 55°C | ||
| Storage Temperature | -15°C to 60°C | ||
