For product specific parameters, please check the following table data. If you have any other questions, please feel free to contact us.
Call now： +86 574-63752220

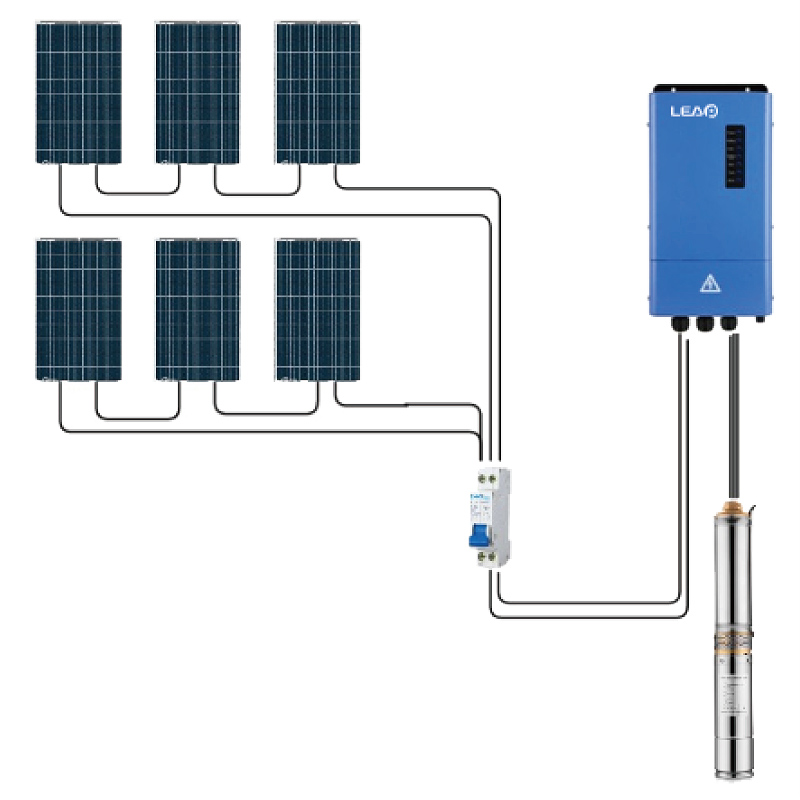

| Model No. | HBDC750 | HBDC1100 | HBDC1500 | |||
|
Solar Panel DC Input |
Max Voc Voltage | 100V | 180V | |||
| Min Vmp Voltage | 24V | 70V | ||||
| Recommend Vmp Voltage | >Motor Voltage | >Motor Voltage | ||||
| Max MPPT Efficiency | 98% | 98% | ||||
| Max Input Current | 25A | 18A | 24A | |||
| Number Of Strings Mc4 | 1(+,-) | |||||
| Note | Automatic MPPT Function to ldentify the Voc and Vmp of Solar Panel,Without Programming | |||||
|
Battery Input |
Voltage | 24/36/48/96/110V Depend on the Pump Voltage | ||||
| Max Input Current | 25A | 18A | 24A | |||
|
"Battery Protection Voltage MIN,RECOVERY,MAX" |
21.3V/23V30V/@24V | 32.5V/35V40V/@36V | 42.6V/46V52V/@48V | 86.4V/92V108.8V/@96V | ||
|
DC Output Parameters |
Max Adapted DC Pump Horse Power | 1 HP | 1.5HP | 2HP | ||
| Max Adapted DC Pump Power | 750W | 1100W | 1500W | |||
| Drive Mode | 3Phase Variable Speed Drive | |||||
| Output Voltage | 24/36/48V | 96/110V | ||||
| Max Output Current | 25A | 18A | 24A | |||
| Water level Sensor(well / tank) | Yes | |||||
| Display | Led display(Power,Solar,Battery,Battery Low,Tank,Well,Error status) | |||||
| Waterproof | N | |||||
| Noise | <50dB | |||||
| Cooling Method | Natural cooling | Fan Cooling | ||||
| Protection |
Solar DC input Over Voltage / Solar DC Input Reverse Polarity /Battery Protection DC Output Short-circuit / DC Output Phase Lose (3Phase) / Over Temperature Over Flow of Tank/Water Empty of Well |
|||||
|
Operating Enviornment |
Operating environment temperature | -10℃ to 60℃, Above 60℃ need to derate load | ||||
| Max Humidity | 95%RH | |||||
| Using altitude | <3000m,Above 3000m need to derate load | |||||
| Others |
Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc |
|||||
| Package | Size | 30*16*11CM | ||||
| Weight | 4.5KGS | 5KGS | ||||
| Model No. | HBP3S-36-200-1.3-73 | HBP4C-48-400-6.5-25 | HBP3S-48-500-2.8-85 | HBP4S-48-600-2.3-132 | HBP4S-110-750-2.70-170 | HBP4C-110-1100-6.5-68 | HBP4C-110-1500-8.4-70 |
| Type | Screw Pump | Centrifugal Pump | Screw Pum | Centrifugal Pump | |||
| HP | 0.25 | 0.53 | 0.67 | 0.8 | 1 | 1.5 | 2 |
| KW | 0.2(200W) | 0.4(400W) | 0.5(500W) | 0.6(600W) | 0.75(750W) | 1.1(1100W) | 1.5(1500W) |
| Phase | 3Phase | ||||||
| Voltage | 36V | 48V | 110V | ||||
| Maximum Flow | 1.3m3/h | 6.5m3/h | 2.8m3/h | 2.3m3/h | 2.7m3/h | 6.5m3/h | 8.4m3/h |
| Maximum Head | 73m | 25m | 85m | 132m | 170m | 68m | 70m |
| Outputlet | 25mm 1"G | 40mm 1"1/2G | 25mm 1"G | 40mm 1"1/2G | |||
| Well Diameter | 75mm | 100mm | 75mm | 100mm | 100mm | 100mm | 100mm |
| Pump Enclosure Class | IP68 | ||||||
| Ambient Water PH Range | 6.5-8.0 | ||||||
| Ambient Water Temperature | 1°C to 35°C | ||||||
| Gross Weight | 5KGS | 7KGS | 7KGS | 9KGS | 12KGS | 12KGS | 15KGS |
